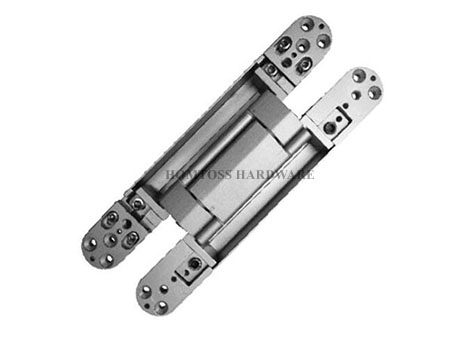

3D Adjustable Concealed Hinge
Item: BG007
Material: Zinc alloy+Aluminum
Size: 28x177mm
Installation: wood tapping screws or iron screws(optional)
Features:
completely concealed for flush door with wooden,steel or aluminum frame
concealed installation
can adjustable after installed
vertical ± 3mm,horizontal ± 2mm, depth± 1mm
Opening angle: 180°
Technical date:
Max. door weight with 2 hinges: 80KG
Min.door thickness: 40mm
Max.door width: 1000mm
Slim design for thin door: 24mm
Finish: SC/SN
MOQ: 500pairs (accept trial order)
Normal packing(can be customized)

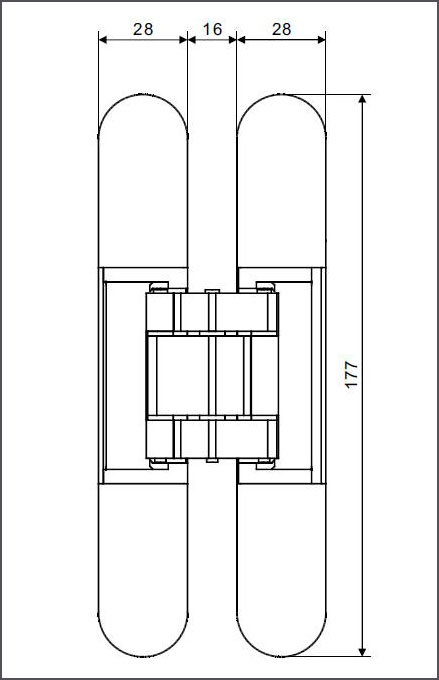

Size as below:
